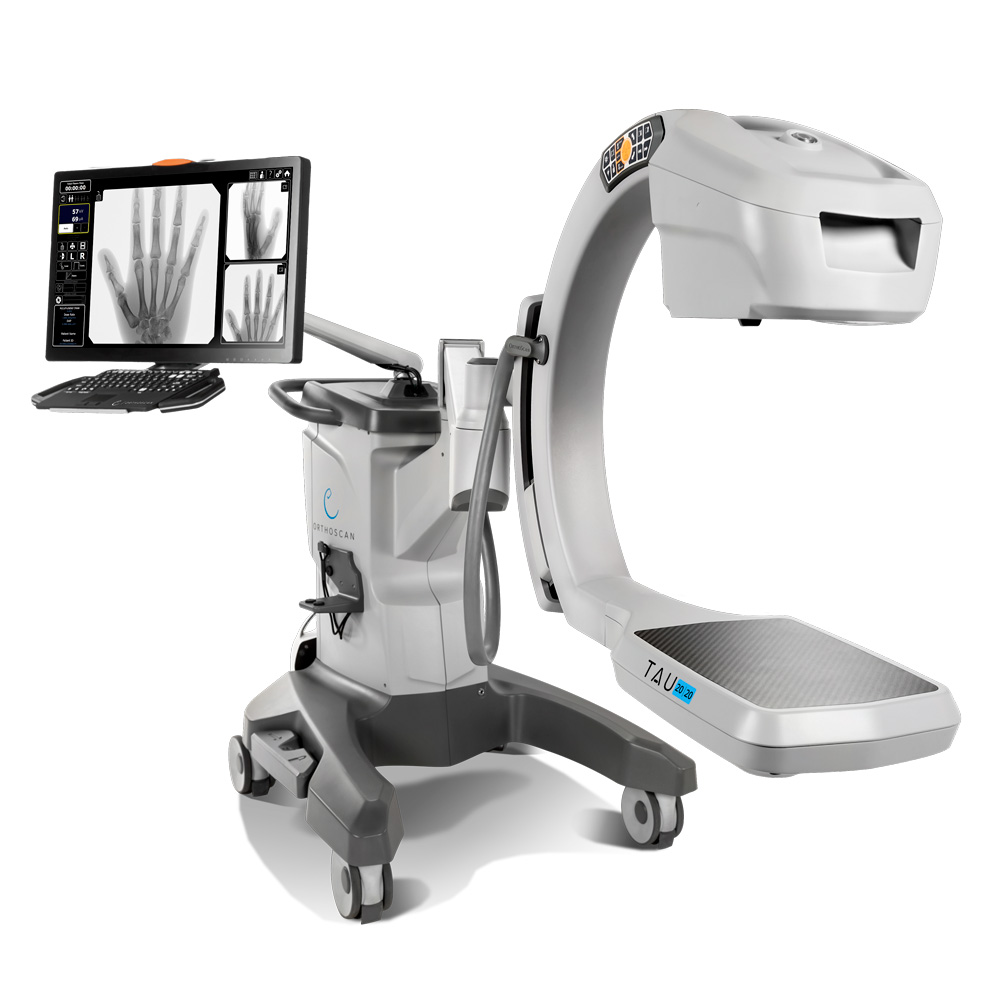

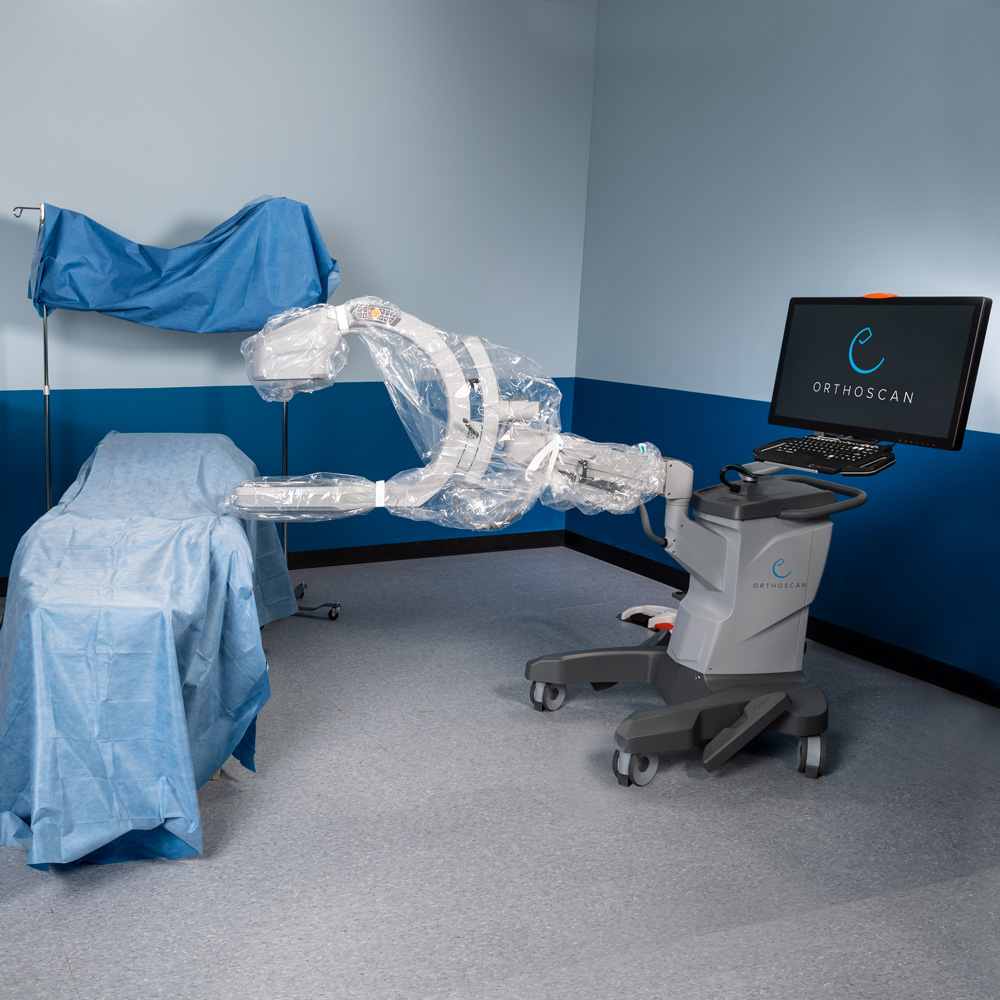

Orthoscan’s flagship Mini C-arm with the largest detector and field-of-view (20×20 cm) and the largest high-resolution diagnostic touchscreen monitor.
Pulsed fluoroscopy and optimised dose filtration support significant dose savings, while a 160° orbital rotation allows image acquisition without stressing anatomy.
TAU 2020 is the only mini C-arm on the market designed with technological innovations to make it the ideal choice for use with paediatric as well as adult patients.
Anatomically Programmed Fluoroscopy.
One-touch optimised imaging programs for different anatomy.
Additional anatomical programs become available when the paediatric patient size is selected.
Exceptional diagnostic images with a 33 x 33 cm live display showing ﬁne anatomical detail with vivid clarity.

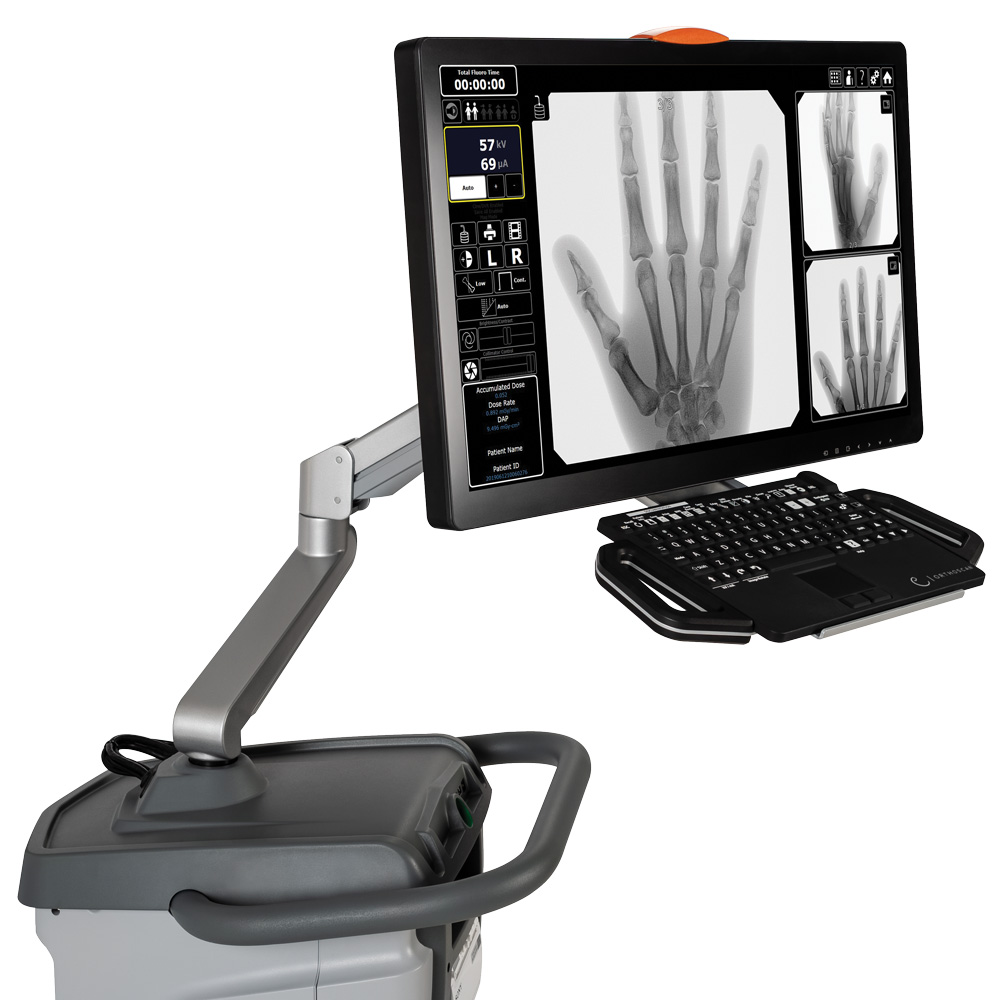

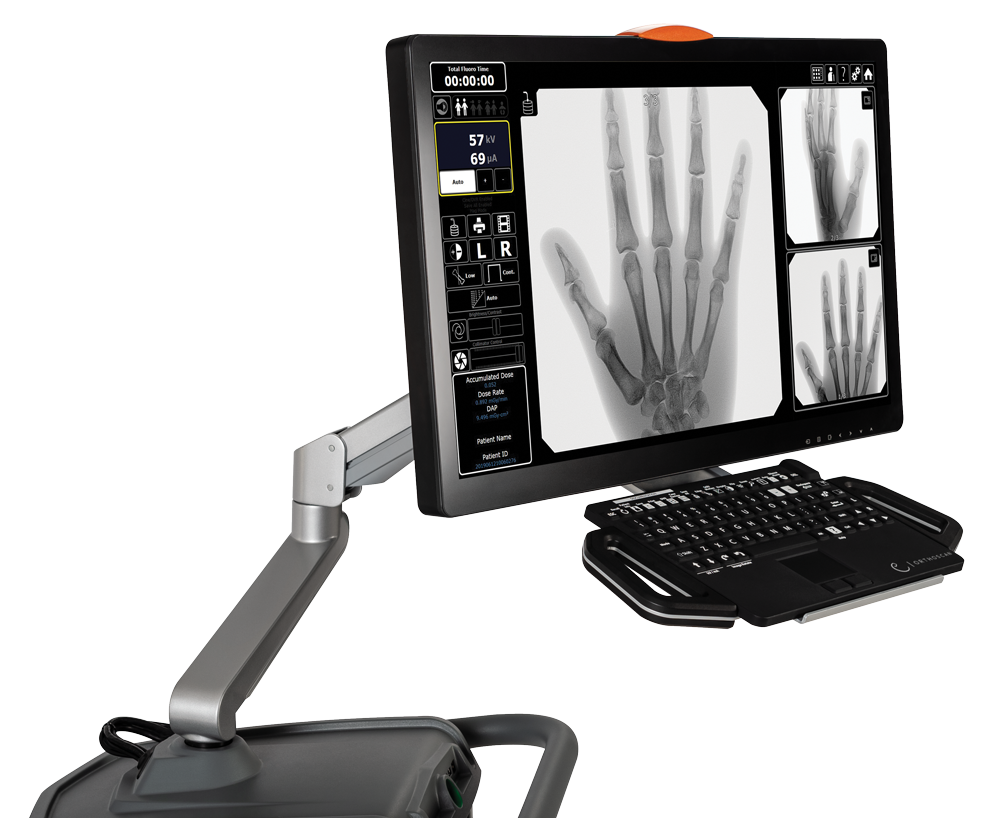

27″ MONITOR (68 cm)
With the largest screen on a mini C-arm, experience optimal eye comfort on a high brightness, 1920 x 1080 resolution monitor.
Advanced touchscreen interface.
Description of common system functions available directly on-screen.
Allows for easy adjustment of monitor and keyboard for viewing of anatomy while sitting or standing.

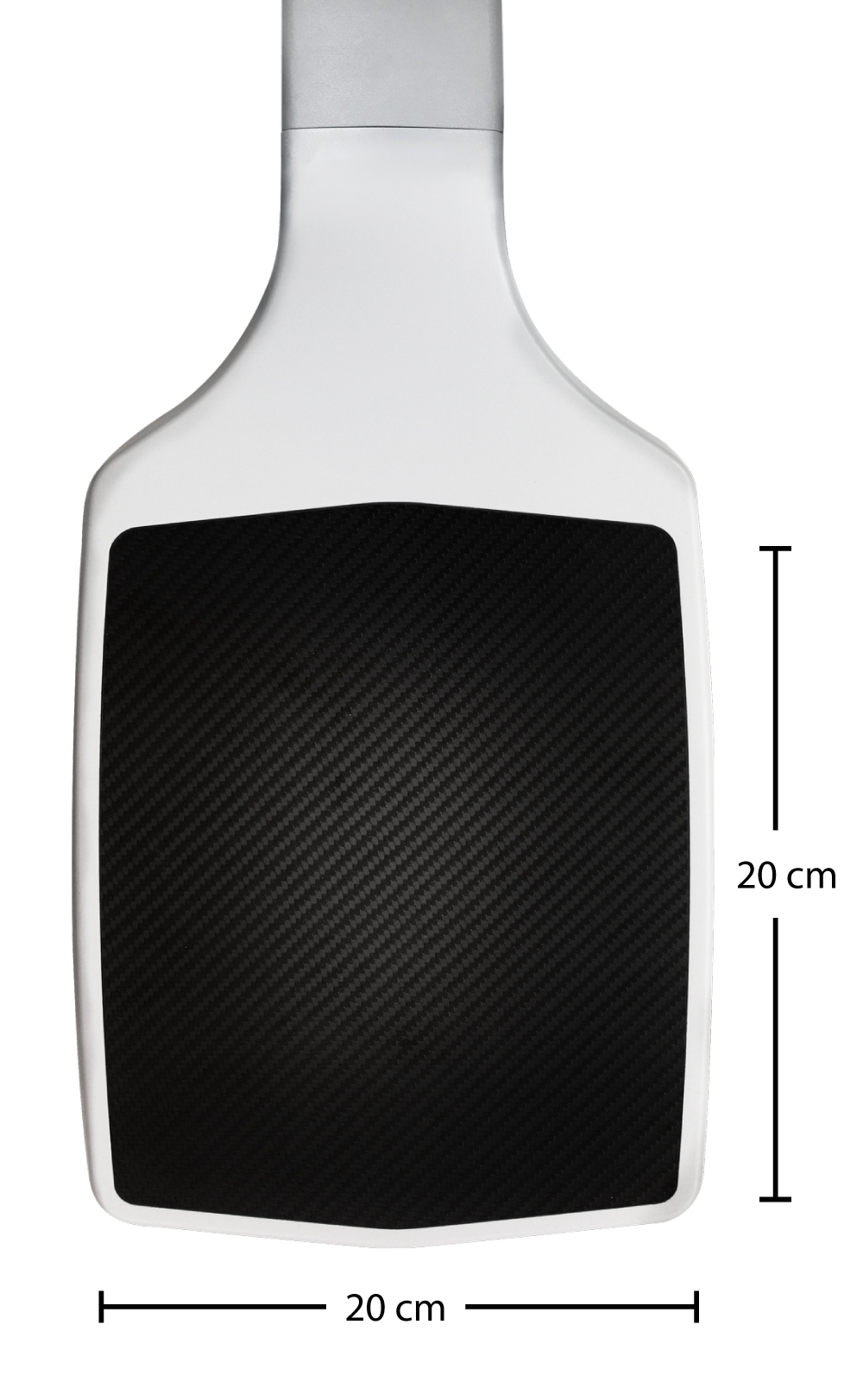

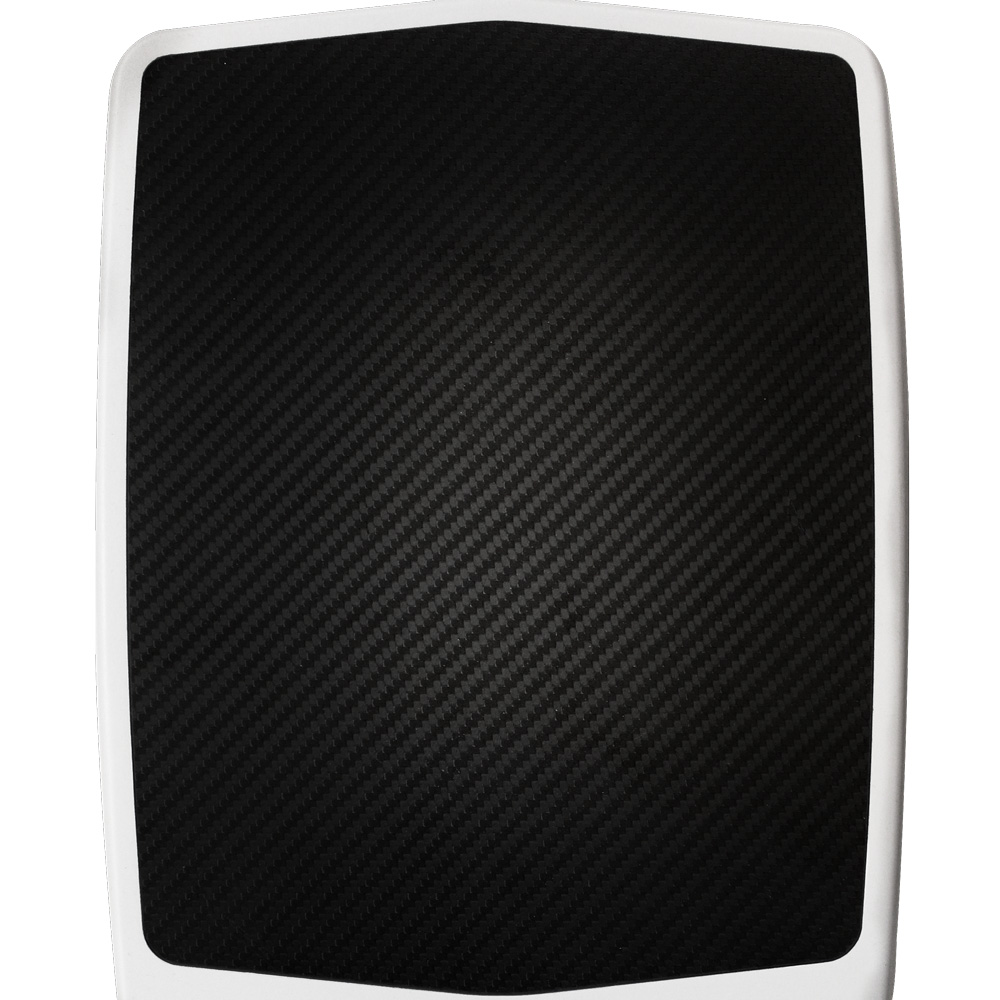

The Mini C-arm with Bigger detector, Bigger possibilities.
Over twice the size of detectors found on conventional mini C-arms, Orthoscan TAU 2020 blurs the line between mini and full size.
Confirm joint spaces with accuracy, see fractures in full view, and save dose by minimising exposure so you can work efficiently. Combined with TAU’s paediatric features, image anatomy can be displayed as never before seen with a mini C-arm.
Image paediatric patients
KEEPING IT MINI
Light weight & compact design simpliﬁes transportation & storage.
SURGICAL LED LIGHTS
Eliminate shadows cast by the C-arm and provide additional illumination on the anatomy.

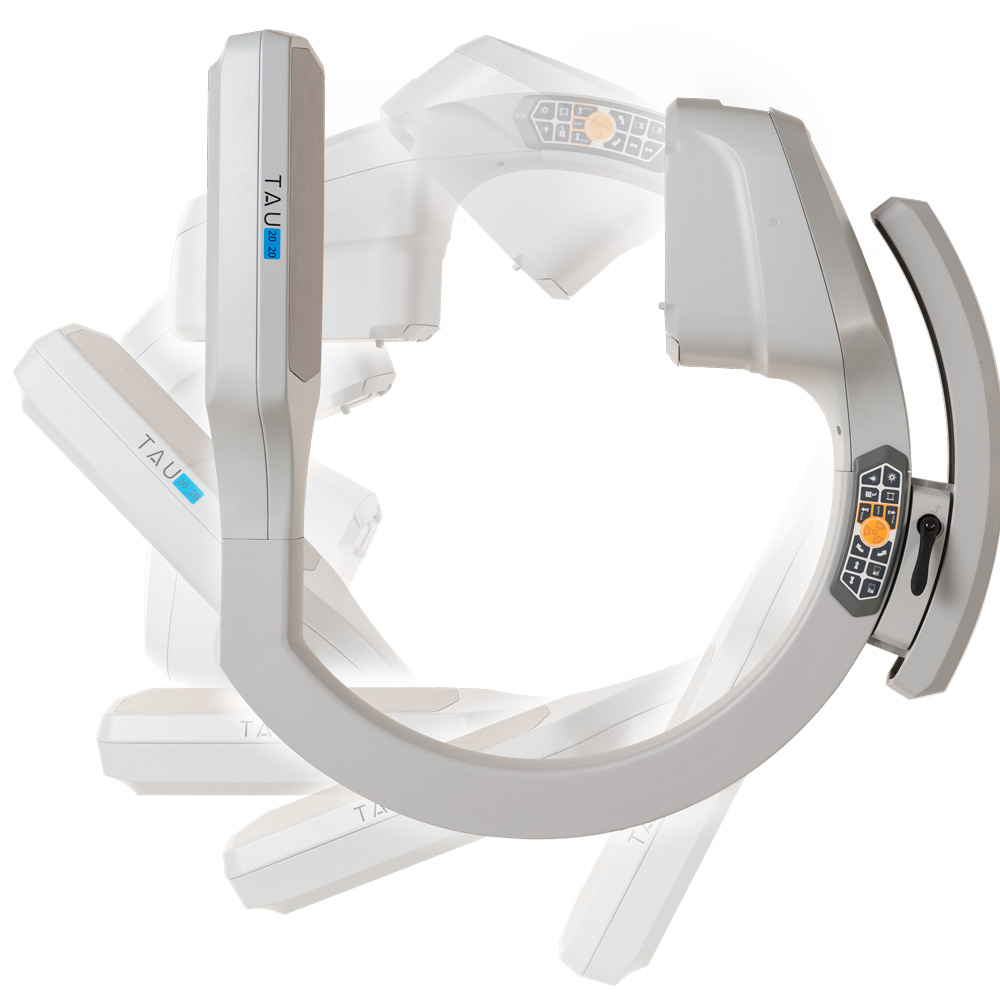

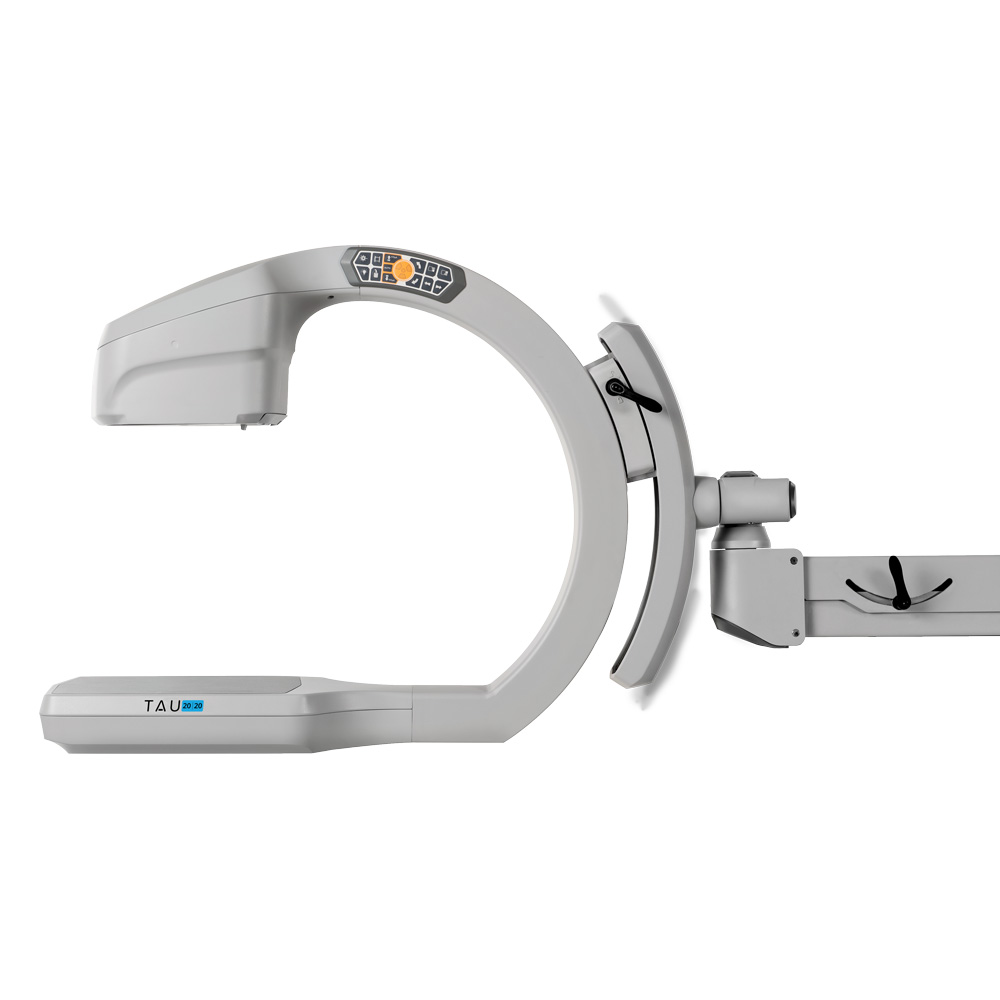

Increased orbital rotation of 160º with a larger C-arm arc depth of 50.8 cm for greater access.
Selectable pulse rates of 30, 15, & 7.5 pulses/s. Significantly reduce dose without loss of image quality compared to units employing only continuous fluoroscopy.
OPTIMISED DOSE FILTER
Reduced dose while maintaining image quality. Reduced exposure to surgeons & patients. The ideal choice for paediatric & adult cases.
NEXT GENERATION CMOS
Increased DQE. Improved image brightness & quality. Sharper pulses with minimal rise time further benefit dose reduction.
Using Intelligent Dose Reduction up to 86% accumulative dose reduction can be achieved.
IMPROVED BILATERAL CONTROLS
New back-lit controls are easier to see with additional buttons for upgraded functionality in the sterile ﬁeld.
Easy access to the power button and I/O ports directly on top of the chassis.
THREE-WAY BRAKE CONTROL
Manoeuvre your system with ease down corridors, around corners, and in the operating room.
INTEGRATED CABLE DEFLECTORS
Protects power cords and other cables from being damaged.
Redesigned from the inside out to reduce maintenance time.
UNINTERRUPTIBLE POWER SUPPLY
Protects your system from data loss in the event of a sudden power failure.
Keep your equipment and data safe in the modern healthcare environment.

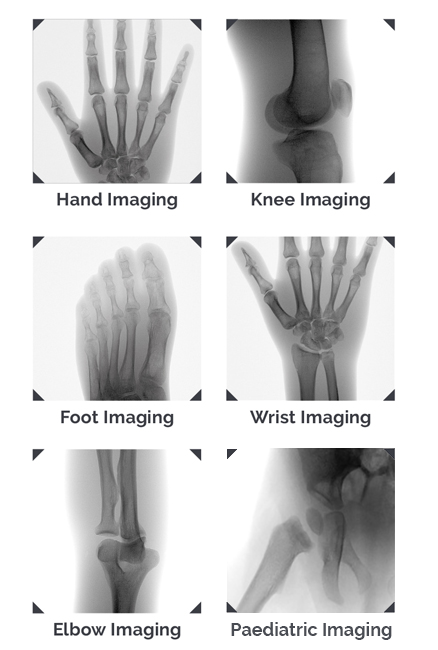

Seamless collimation, for the perfect image.
Introducing the industry’s ﬁrst stepless motorised collimator in a mini C-arm.
With the touch of a finger, users can infinitely adjust the collimator via the touchscreen user-interface to minimise radiation exposure, reduce patient dose and limit the irradiated area to the region of interest. Improved contrast and detail-rich results provide users with a clear image for accurate treatment.
Intelligent Dose Reduction.
Do more. Dose less.
The TAU family includes cutting-edge Intelligent Dose Reduction technology that provides the best in diagnostic image quality while reducing exposure to you and your patients.
