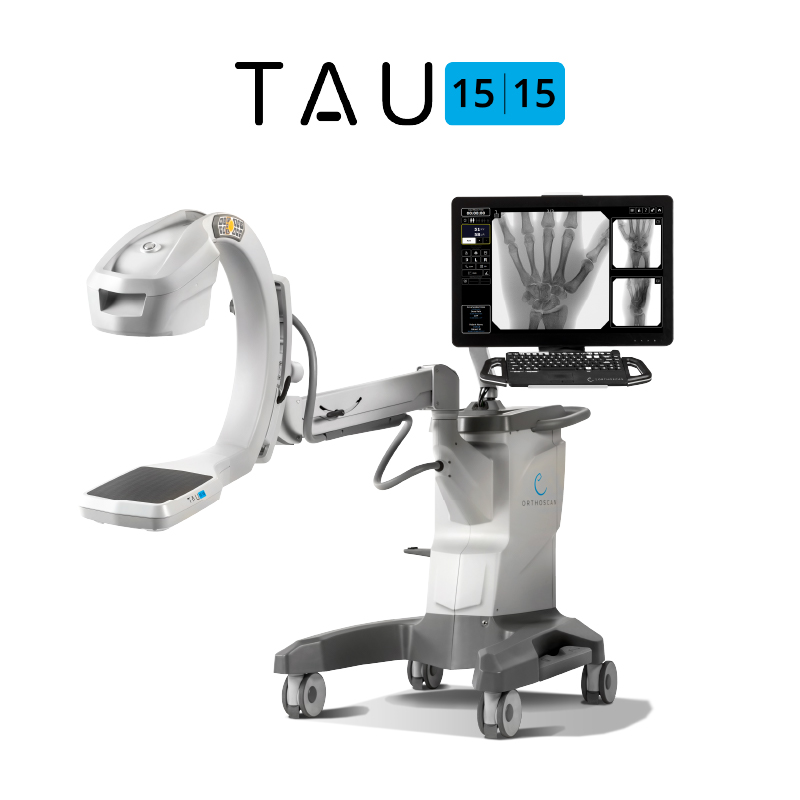

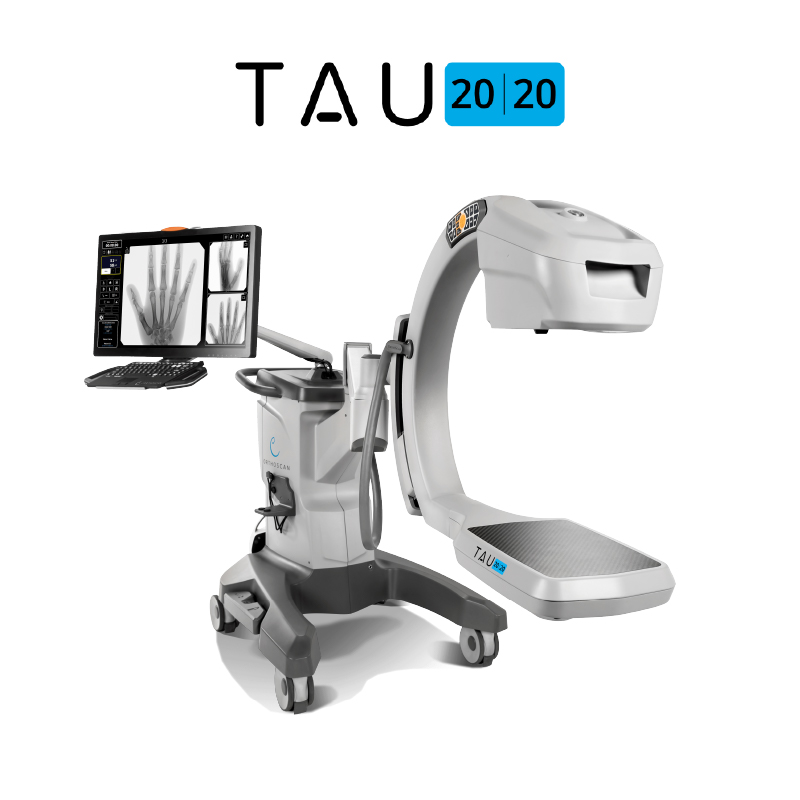

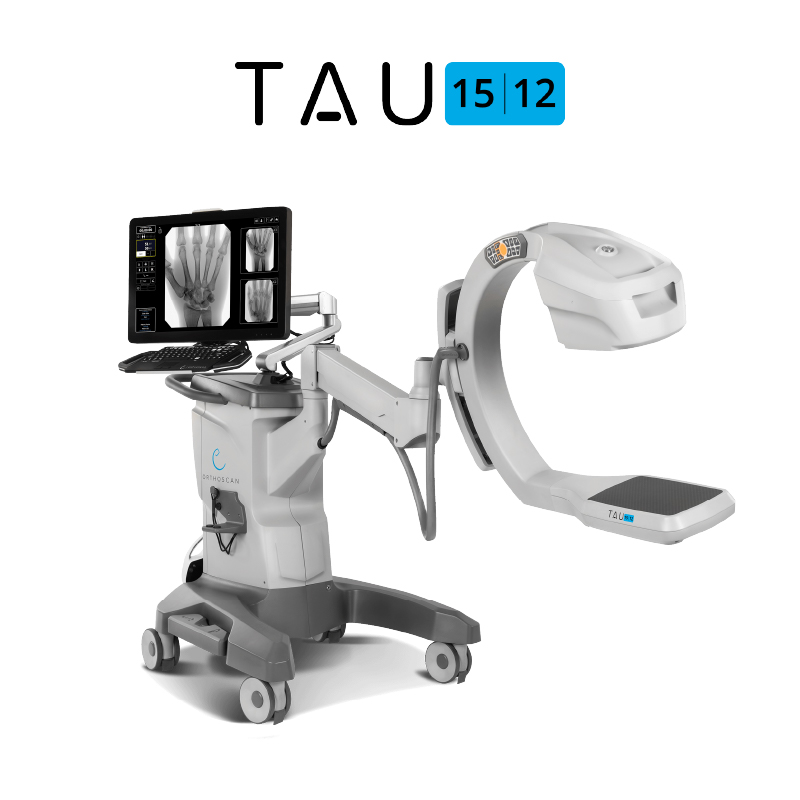

Mini C-arm TAU Range.
The TAU range has been designed to minimise clinician & patient dose whilst optimising image quality without compromising safety, usability, aesthetics, mobility and user choice. Select the TAU system best suited for your Practice.
Intelligent Dose Reduction.
Do more. Dose less.
The TAU range includes cutting-edge Intelligent Dose Reduction technology that provides the best in diagnostic image quality while reducing exposure to you and your patients.
Discover the other Mini C-arm products in our range here.
Image paediatric patients
KEEPING IT MINI
Light weight & compact design simpliﬁes transportation & storage.
SURGICAL LED LIGHTS
Eliminate shadows cast by the C-arm and provide additional illumination on the anatomy.
Increased orbital rotation of 160º with a larger C-arm arc depth of 50.8 cm for greater access.
Selectable pulse rates of 30, 15, & 7.5 pulses/s. Significantly reduce dose without loss of image quality compared to units employing only continuous fluoroscopy.
OPTIMISED DOSE FILTER
Reduced dose while maintaining image quality. Reduced exposure to surgeons & patients. The ideal choice for paediatric & adult cases.
NEXT GENERATION CMOS
Increased DQE. Improved image brightness & quality. Sharper pulses with minimal rise time further benefit dose reduction.
Using Intelligent Dose Reduction up to 86% accumulative dose reduction can be achieved †.

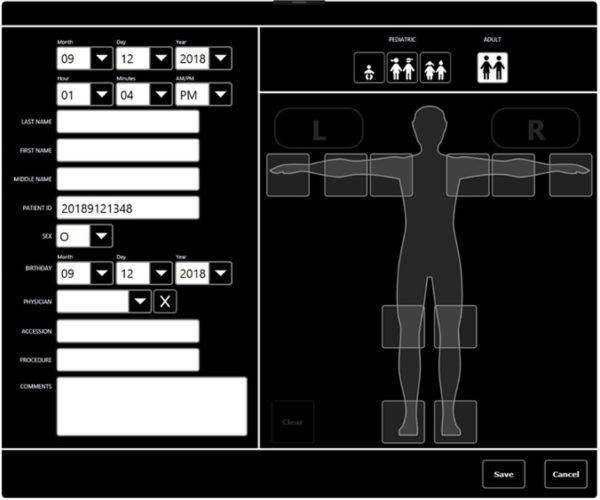

Anatomically Programmed Fluoroscopy.
One-touch optimised imaging programs for different anatomy.
Additional anatomical programs become available when the paediatric patient size is selected.
IMPROVED BILATERAL CONTROLS
New back-lit controls are easier to see with additional buttons for upgraded functionality in the sterile ﬁeld.
Easy access to the power button and I/O ports directly on top of the chassis.
THREE-WAY BRAKE CONTROL
Manoeuvre your system with ease down corridors, around corners, and in the operating room.
INTEGRATED CABLE DEFLECTORS
Protects power cords and other cables from being damaged.
Redesigned from the inside out to reduce maintenance time.
UNINTERRUPTIBLE POWER SUPPLY
Protects your system from data loss in the event of a sudden power failure.
Keep your equipment and data safe in the modern healthcare environment.

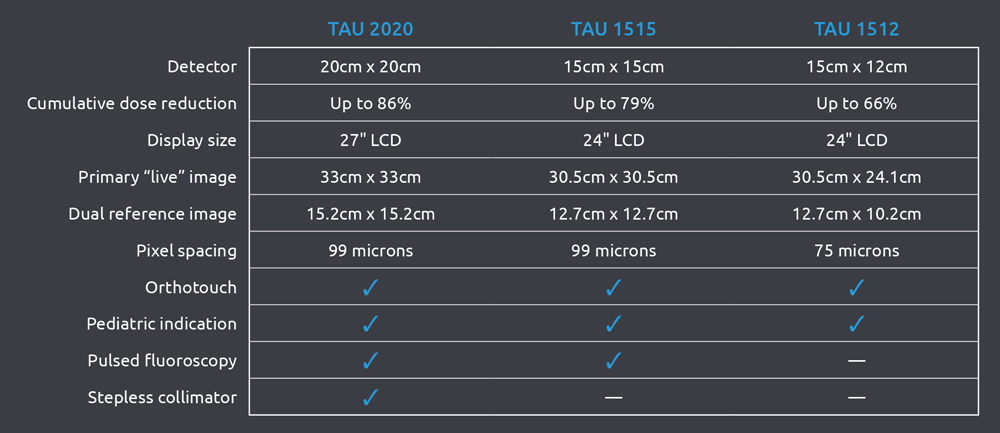

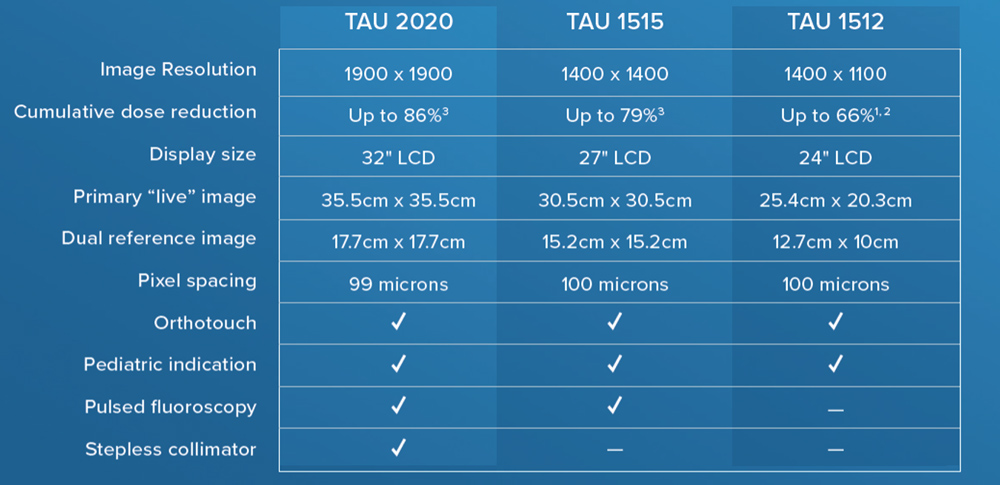

TAU Range Comparisons
Discover our TAU Range
† Using Intelligent Dose Reduction (with Cu filter) when compared to Orthoscan FD. In clinical practice, the use of IDR may reduce patient dose depending on the clinical task, patient size, anatomical location, and clinical practice. A consultation with a radiologist and a physicist should be made to determine the appropriate dose to obtain diagnostic image quality for the particular clinical task.
